Pins 11 to 14 produce the decoded output.

Output pins of the controller i. Relay output is connected to AC source i. Relay acts as a switch.

It produces isolation from different parts of the circuit. In our project it is used to switch AC load using 5v which is maximum voltage from controller. Relay used here is magnetic relay. How to Operate the Circuit?

When the circuit is powered, controller continuously checks the inputs. PD0 is connected to relay.

project report on home automation using dtmf | Telephone | Discrete Fourier Transform

Relay is used for switching the circuit and thus fan is ON. Similarly, if the received input is 2 fan is switched off.

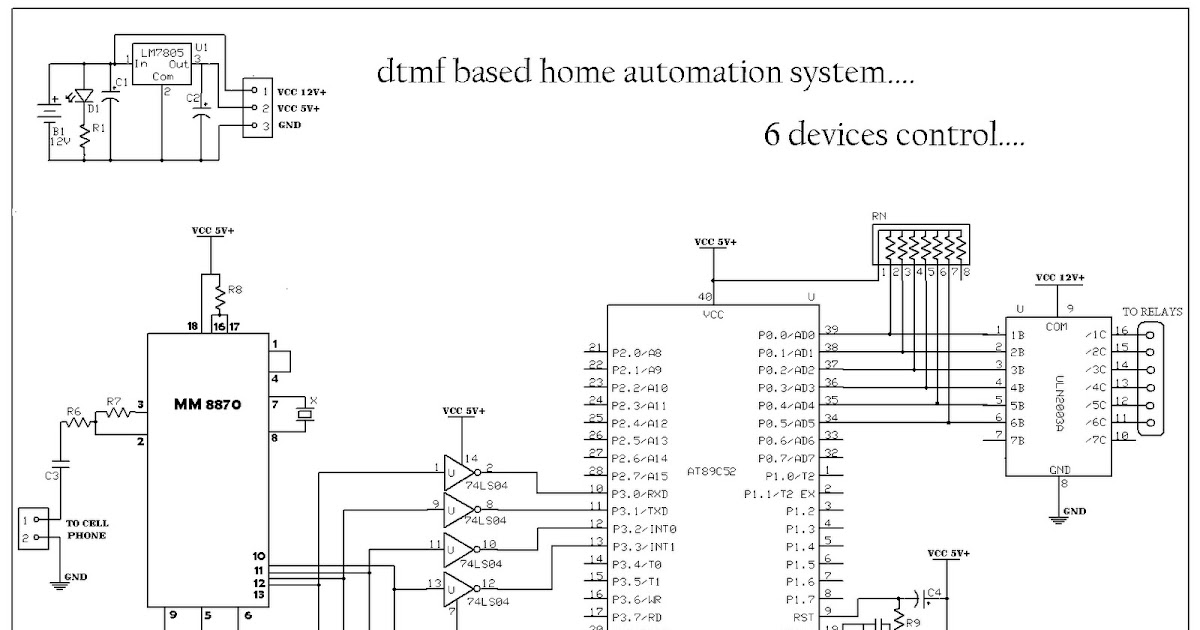

If received input is 3 light is switched on and if it is 4, light is off. Through this project we have tried to show automatic control of a house as a result of which power is saved to some extent. Sometimes we may forget to switch off the appliances while going outside and then ponder how to switch off these devices while we are out of home. To solve these types of problems, this article explains you how to design a simple circuit, which will on and off the devices remotely by the using of DTMF decoder.

Director Tutorials

We are using the microcontroller in this circuit for controlling different devices. It enables us to control any or all electrical devices in our home or office automatically, either by remote control or even by voice command. Usf international business plan competition automation also called domotics is the residential extension of "building automation" which refers to the automation of household activity.

It may include centralized control of lighting, HVAC heating, ventilation and air conditioningappliances, and other systems, to provide improved convenience, comfort, energy efficiency and security. It can provide increased quality of life for differently abled people who might otherwise require help from caregivers or institutional care.

Telephone exchange

Moreover, humans are more likely to commit errors and in intensive conditions the probability of error increases, whereas an automated device can work with diligence, versatility and with almost zero error. For example, an enterprise that has invested in automation technology recovers its investment, or a state or country increases its income due to automation like Germany or Japan in the 20th Century.

All this is because of DTMF.
